GIGA IV – Head end ignition

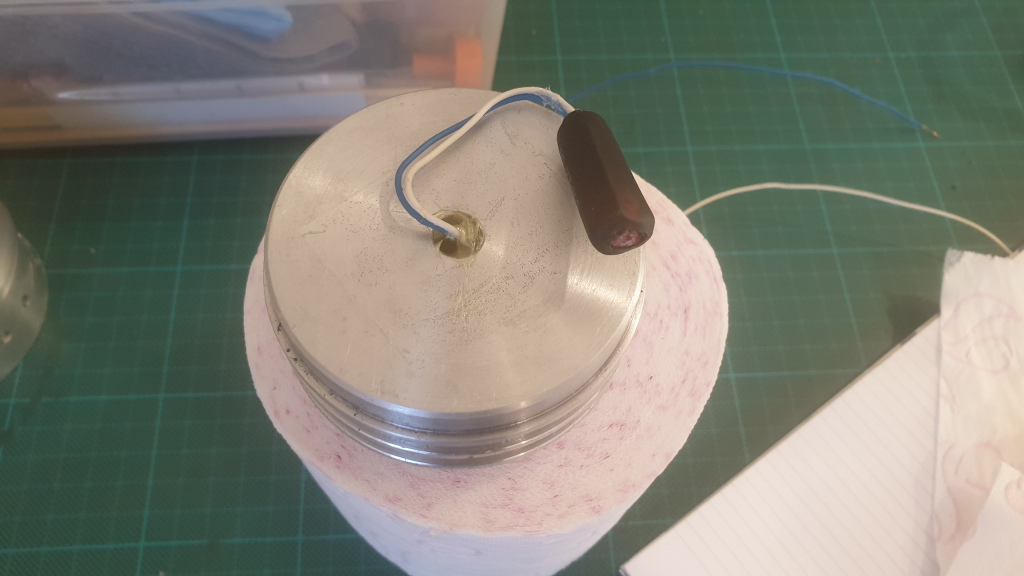

  • Stainless steel head end igniter body from the GIGA III flight was re-furbished.

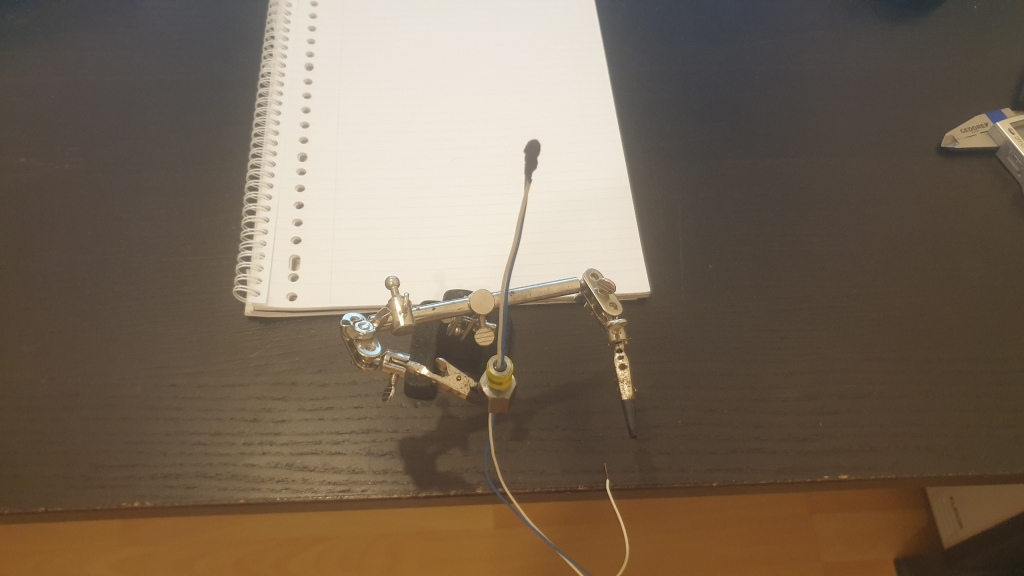

  • For high altitude ignition the fuse head igniter was dipped in a slurry of BKNO3 viton aceton and left to dry.

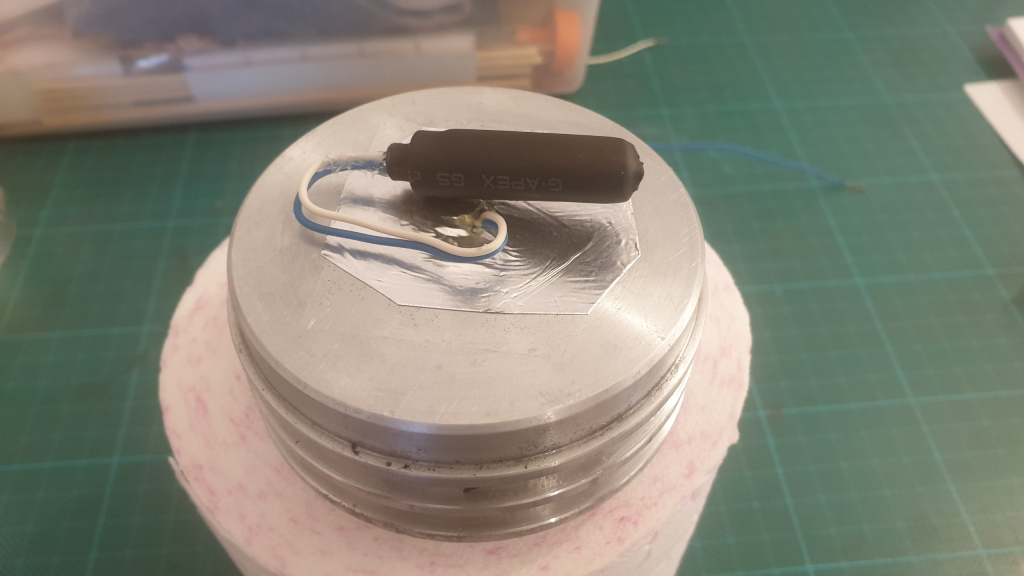

  • 3gr RIO/CuO/Mg thermite charge in heat shrink tubing as initial igniter.

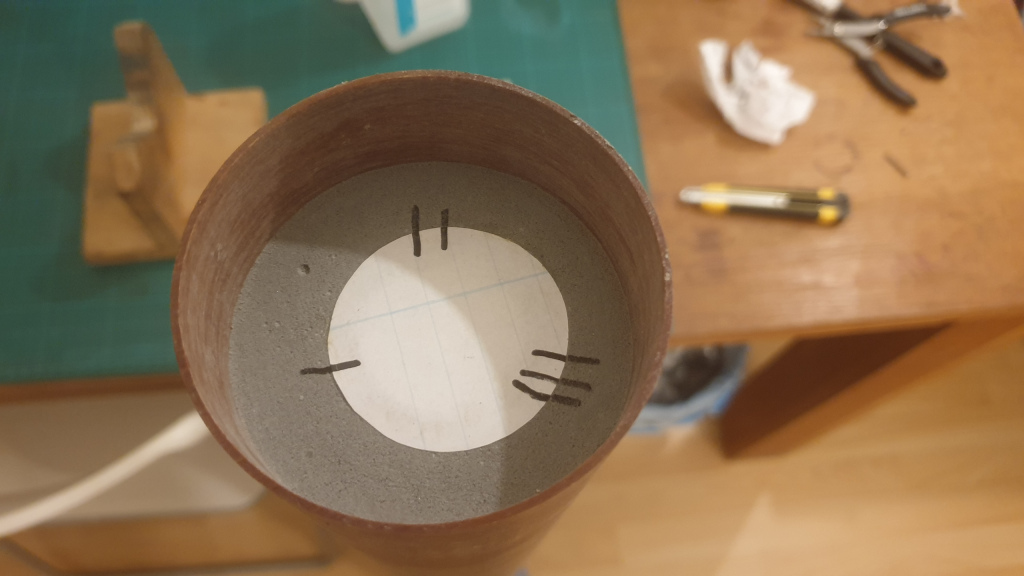

  • Booster ignition charge on top of monolithic grain consiting of 8gr plain APCP shaving and another 8gr of RIO/CuO/Mg thermite.
  • Followed exact same design as used on GIGA III:
