GIGA IV – Two stage

20190427_141101The GIGA III launch was epic! Now in its fourth generation the GIGA IV has meanwhile been launched. Will it be even “harder, better, faster, stronger”.

Rocket Outline

  • BOOSTAR-TWO / GIGA IV, 130mm booster to 86mm sustainer, minimum diameter, experimental, two stage rocket.
    • Diameter – 130/86mm.
    • Length – 4030mm.
    • Weight fully loaded – 57.7kg
    • Motors: LD 12 point star core 130mm / KILO core burner.
    • Apogee: planned 20+km; realized 7.5km due to
    • RUD (Rapid Unplanned Disassembly) after delayed sustainer ignition.
    • Maximum velocity: planned 1370m/s / Mach 4,6*; realized 600m/s.

Note: * – to be updated according to as-built values

Flight

The BOOSTAR-TWO / GIGA IV two stage rocket flew to a disappointing 7+km after a RUD of the sustainer motor. Sustainer was recovered in full during the FLIGHTS OF EXPERIMENTAL ROCKETS (LRE) / DRAWSKO POMORSKIE 12-06-2021

Event description OpenRocket
simulation
RDAS
Flight I
Notes
Booster max start acceleration 12.3G 17G (peak 22G)
Booster burn out 560m/s @ 2050m (t+6.5s) 600m/s @ 1990m (t+6.3s)
Booster max de-acceleration -7,9G -77.4m/s2 -5.6G
Sustainer separation @ t+10s 377m/s @ 3710m 427m/s @ 3530m
  -2.4G -1.6G
Sustainer ignition pulse @ t+16s 260m/s @ 5600m 305m/s @ 5440m
Sustainer motor start @ t+20s 204m/s @ 6520m 247m/s @ 6357m



Goals

  • Successfully fly and safely recover the GIGA IV as a sustainer in a 2-stage rocket configuration.
    • – After a delayed ignition the motor over pressurized resulting in a RUD (Rapid Unplanned Disassembly). Rocket was recoverd under parachute. Motor came in balistic but was found and recovered.
  • Obtain a solid 3D GPS lock / position at apogee. Three GPS receivers were flown:
    • Hyperion – unlocked GPS (unrestricted)
    • Quectel in balloon mode (up to 80km)
    • – UBLOX in air borne mode (up to 18km).
  • Develop and successfully fly a water tight avionics compartment in anticipation of a sea launch.
    • the avionics were not flown in water tight configuration as the rocket was intended to be recovered over land. Instead a pressure port was kept open to equalize pressure and get barometric readings.
  • Successfully ignite the lengthened KILO core burner motor at near vacuum conditions.
    • – After 10s of delayed ignition the motor over pressurized resulting in a RUD (Rapid Unplanned Disassembly)
  • Develop a high thrust / short burn 130mm booster motor.
    • – Both the static test as flight motor performed flawless.

Design & Construction

Sustainer: GIGA IV

  • Rocket – Lengthened motor casing to accommodate more propellant, lighter glass fiber airframe, integrated av-bay / nose cone electronics by common bulkhead, lighter nose cone, true minimum diameter, experimental rocket.
    • Diameter – 86mm.
    • Length – 2400mm.
    • Weight fully loaded – 17,8kg*.
    • Apogee: +20km
    • Maximum velocity: 1370m/s / Mach 4,6*.
  • Sustainer Motor – Lengthened KILO core burner “lite” motor (86x3mm casing) with head-end-ignition.
    • Propellant: 66/12 (78% solids).
    • Total impulse: approx 17.800Ns.
    • Isp: approx 215s.
    • Burn time: 8,3s.
    • Propellant mass: 7,95kg.
    • Equivalent to a N2020.
  • Payload
    •  Flight control – RDAS Tiny.
    •  Onboard camera – Mobius mini.
    •  Tracking – Talky GPS, 2 Watt by LD
      • Quectel GPS – in balloon mode. Tested up to 80km and according to GPS spoofing up to 120km still GPS lock. Quick lock on tart up is expected to loose lock under dynamic flight only to regain shortly prior to apogee.
    • 2 passive GPS receivers with data loggers.

Note: * – to be updated according to as-built values

Some key, as-built, statistics BOOSTAR-ONE / GIGA III which seem to work fine:

  • Static margin booster / sustainer: 6.1 cal.
  • Stability margin booster / sustainer after leaving launch rail: 3.5 cal @ 42m/s (151km/h)
  • Stability margin booster / sustainer after motor burnout: 8.9 cal.
  • Static margin sustainer: 3.3 cal.
  • Stability margin sustainer after separation / coasting: 4.1–>3.6 cal.
  • Stability margin sustainer minimum: 2.4 cal @ 836m/s (Mach 2.68).
  • Sweep angle fins 60°.



Sustainer Motor

The below KILO core burner motor on a 66-12 reload.

Pressure test sustainer casing

To determine the cause of failure of the GIGA IV flight one of the items we never knew for sure was tested. A casing was machined from the same batch of aluminium tube as flown in the GIGA IV flight. Two forward closures were installed and the casing was filled with water. A hydraulic hand pump was used to increase the pressure and the casing was tested to destruction.

Finally we do not only have a calculated maximum casing pressure but also a real life test:

  • Calculated design burst pressure: 162bar.
  • Real life burst pressure: 173bar or 2500psi.

Conclusion: the design of the retaining bolts has been validated and proved not to be the weakest point. In fact, the casing itself by material choice and wall thickness proved to be the weakest point. However, this test proved the casing design is meeting or exceeding all its design criteria.




GIGA IV - Head end ignition

  • Stainless steel head end igniter body from the GIGA III flight was re-furbished.
  • For high altitude ignition the fuse head igniter was dipped in a slurry of BKNO3 viton aceton and left to dry.
  • 3gr RIO/CuO/Mg thermite charge in heat shrink tubing as initial igniter.
  • Booster ignition charge on top of monolithic grain consiting of 8gr plain APCP shaving and another 8gr of RIO/CuO/Mg thermite.
  • Followed exact same design as used on GIGA III: https://www.verticallimits.nl/?p=6309



KILO monolithic core burner – static test 21-02-2020

This write-up of the core burner test is condensed as it is very similar to the test performed with the hybrid finocyl / core burner test. On Friday 21st of February the KILO core burner motor was static tested on a 66/12 reload. This was motor was designed for maximum volumetric loading, lowest core mass flux thus reducing erosive burning at start-up and followed by an expected progressive thrust curve.

Upgraded igniter consisted of a 4gr CuO/Fe03/Mg thermite 10mm heat shrink tube igniter inserted in a 20mm heat shrink tubing with mix of 6gr thermite and 8gr of plain APCP shavings sealed with some toilet paper rolled up into a ball.

Chamber pressure and thrust was again independently measured. After days of rain, the weather was dry and partial sunny at 9°C. After a 5sec count down the remote controlled ignition was pushed, the igniter popped the thermite charge and after 6 seconds the motor came up to full pressure. Thrust profile showed an expected and acceptable erosive spike at start up followed by a progressive burn and 3-4s tail off. Basically the thrust curve is all over the place but a good sustainer motor. The motor reached a total impulse of 16.780Ns at a Isp of 215s. This motor delivered 6.300Ns or approximately 60% more total impulse than the previous KILO 5GXL sustainer motor which flew in the GIGA III.

For now,this test concludes the development for the GIGA IV sustainer motor which is now flight ready.




GIGA IV - extended motor casing

"Black Cat Rocketry" liners are dimensional equivalent to PML phenolic tubes except that they come in 1225mm lengths whereas a PML tube is 916-912mm. This gives the possibility of an additional 310mm propellant without the need of splicing a liner. This BCR liner was already used in the BOOSTAR-ONE motor as a liner / casting tube for a monolithic star grain. As usual a heavy wall thickness 90x5mm static test casing with M5 bolts and a 86x3mm flight casing with M4 retaining bolts were machined. New casing length is 1360mm. Fin holders were gratefully machined by JWS.

Planned reloads / static tests:




Airframe and nose cone

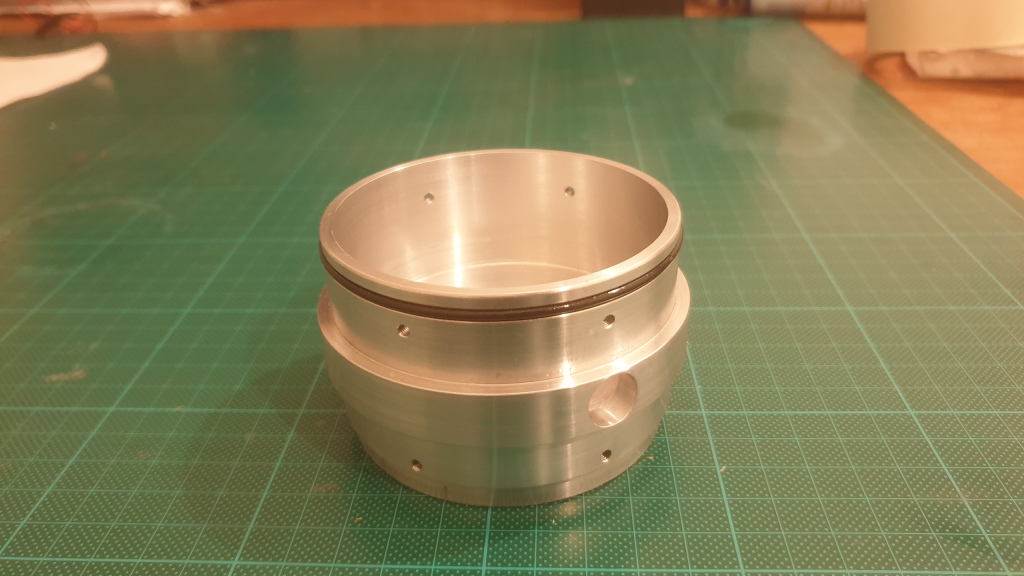

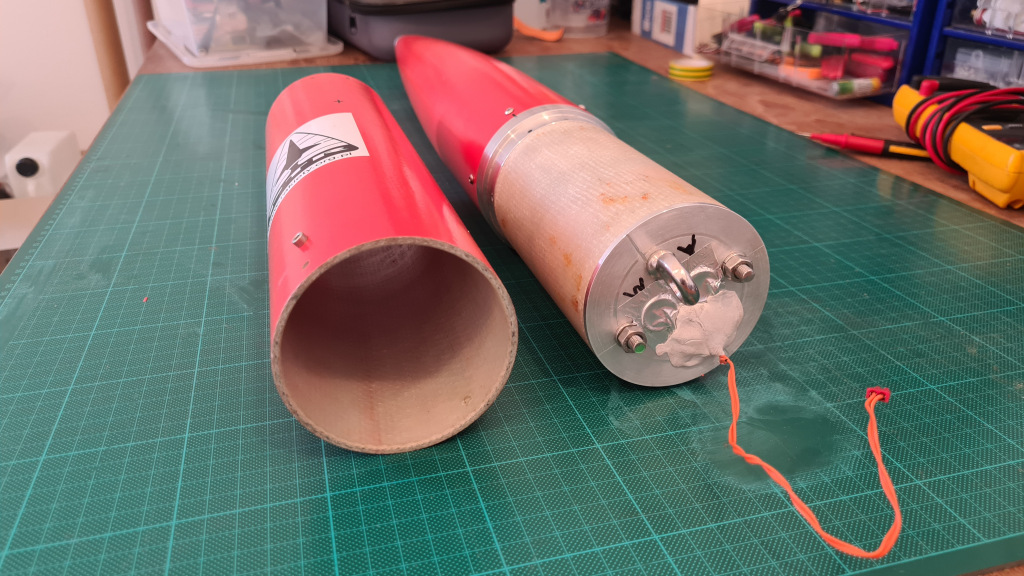

GIGA IV – Common bulkhead

One of the design changes for the GIGA IV is a common bulkhead to join the previously central avionics bay of GIGA I-III (in control of recovery) with the updated nose cone electronics (camera and GPS tracker). With this modification there is no longer space for a separate main parachute compartment as can be expected in a normal HPR dual deployment set up. Instead a single 2ft kevlar Rocketman parachute is deployed at apogee. Considering landing at sea or in a forest, the resulting higher decent rate is therefore unlikely to damage the rocket.

Since optionally landing at sea was used as a starting point, a lot of consideration went into the design and production of this concept to ensure both the avionics bay as well as the nose cone electronics are air / water tight.

The camera lens is glued / sealed in place through the bulkhead wall. For a next revision the lens band of the bulkhead is to be a bit longer than the current 13mm since only a thin edge remains due to the 12mm hole.



GIGA IV - Airframe construction

The GIGA III was built completely from aluminium but heavy like a tank. That is probably the reason why it was so successful recovering from non-flight-critical failures. In order to shave some weight for the from the total rocket mass of the GIGA IV it was decided to replace the aluminium tubes with fiberglass (FG) tubes. In the end, to produce accurate custom fiberglass parts, it proved to be a lot of work including fabricating of many custom jigs. Mass density savings FG overs aluminium: 1,68 vs 2,7 gr/cm³. However with the new single parachute design (effectively shortening the airframe) the weight saving of the FG airframe and av-bay coupler tube for GIGA IV was 886gr or a 61% reduction when compared to the GIGA III. Aluminium GIGA III 1440gr. Shortened FG GIGA IV 554gr = weight saving of 886gr.

Notes airframe: 300mm section.

  • 280gr/m2 FG gives a layer thickness of 0,25-0,30mm.
  • ID of 80mm + 12*0,25= 3mm => 12 wraps minimum proved to be sufficient - as-built OD: 87mm.
  • (π*0,086)=0,27m per wrap. 12*0,27=3,24m => 3 piece of FG, each 1,08m long.
  • 0,4 (width)*1,08 (length of FG cloth)*3 (pieces of FG cloth)*280 (FG mass/m2)*0,85 (FG/epoxy ratio) = 308gr epoxy. Based on FG / Epoxy = 1: 0,85.
  • 3 cups of each 70g epoxy / 35gr harder = 315gr epoxy.
  • OD mandel with polyester paper is 79,9mm.

Notes coupler to house av-bay: 132mm section.

  • 280gr/m2 FG gives a layer thickness of 0,25-0,30mm.
  • ID of 76mm + 8x0,25= 2mm => 8 wraps minimum proved to be sufficient - as-built OD: 80,5mm.
  • (π*0,08)=0,2m per wrap. 8*0,25=2m => 2 piece of FG, each 1m long.
  • 0,3 (width)*1 (length of FG cloth)*2 (pieces of FG cloth)*280 (FG mass/m2)*0,85 (FG/epoxy ratio) = 142gr epoxy. Based on FG / Epoxy = 1: 0,85.
  • 2 cups of each 50g epoxy / 25gr harder = 150gr epoxy.
  • OD mandel with polyester paper is 76,3mm.

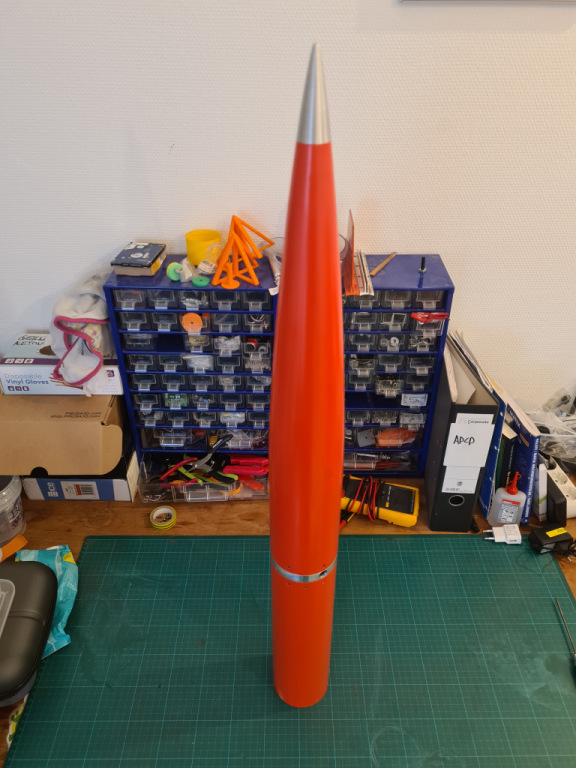

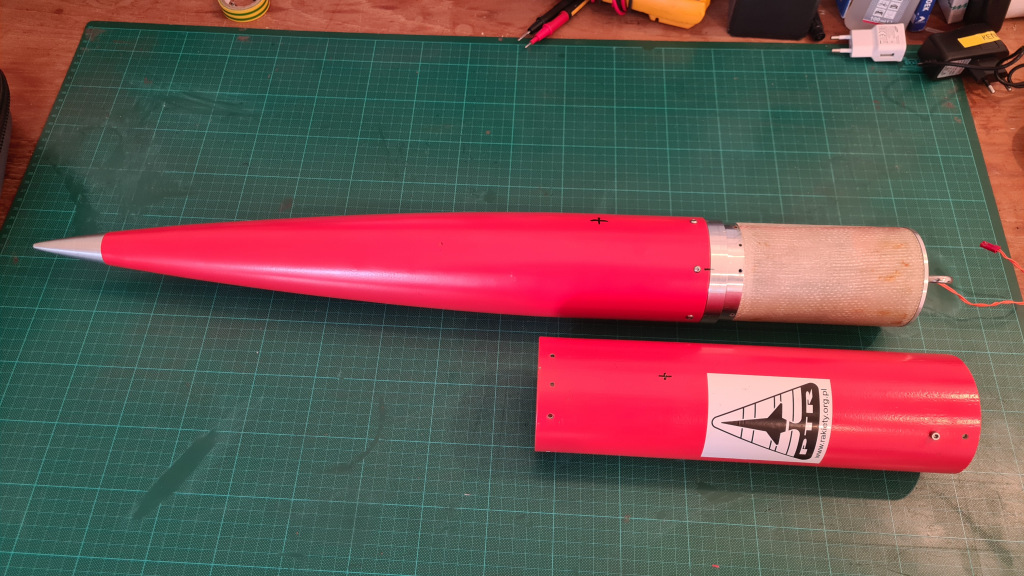

GIGA IV – Nose cone construction



Lessons learned:

  • Don't take this route again using the M10 threaded section as a basis for concentricity. If going to machine on lathe, start with concentric mold before laminating / machining. Don't rely on staightness  M10 threaded section which can get close but slightly off straight M10 threaded section will result in a significant wobble in the middle when put in the lathe. Machine mold in lathe prior to lay-up. Don't use central threaded section as this is not concentric. At half length this will show in eccentricity.
  • With gore pattern, no overlap on both sides (curls into each other). <1/2 diameter.
  • Use long GF tow to compress GF lay-up especially near tip.
  • Check usage of weefsel improves at tip over the stiff keeperweefsel.
  • Sand coat: 4ml - base / 2ml - harder / 0,5gr glass bubbles (1 teaspoon) / 0,18gr aerosil (1/2 a teaspoon).
  • Laminating - 2,5hr nett.

Kitty hair:
4/2g = 6gr epoxy. 1 flat teaspoon chopped fibers.

Sand coat:
20/10 = 30gr epoxy. 5 teaspoons glass bubbles, 1 tea spoon aerosil. Thickness of paint. Doesn't wet out fully but 90% OK.

12 gores:
Epoxy use: 6x 60gr epoxy batches = 360gr epoxy in total. 5x 60gr batches for 12 gores and 1x 60gr for cylindrical cloth piece.


Avionics

GIGA IV – ELECTRONICS

See text under photos for a detailed description.



Recovery

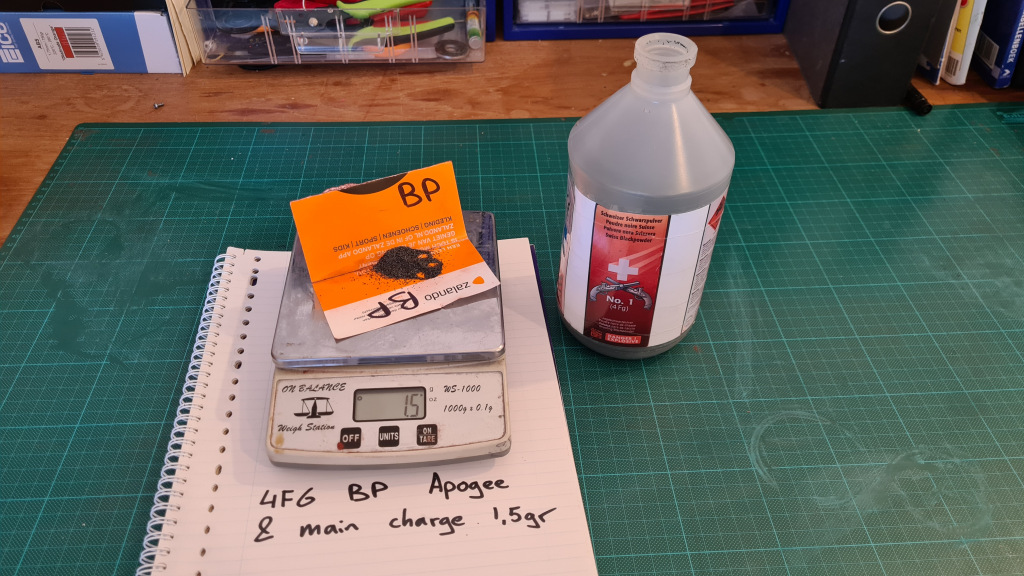

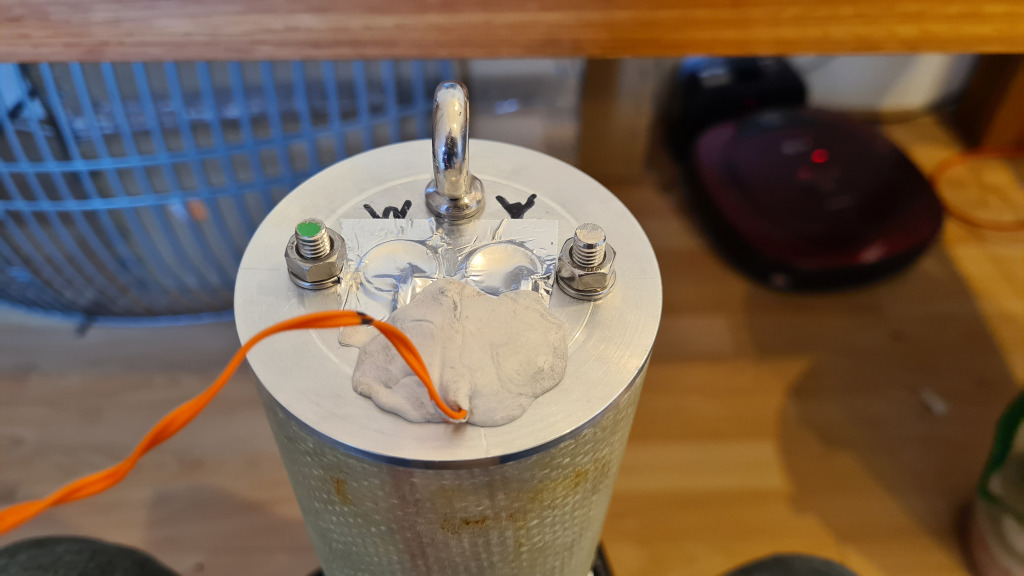

GIGA IV - Apogee deployment charge test


  • Place eye bolt for shock cord 45° to head end igniter body.
  • Place shock cord above eye bolt as the drogue fabric could get squeezed tight between eye bolt and d-shackle.


*** Check to add some bungee cord (snap-back) or velcro (no snap-back but bulky) to absorb some of the energy / load and prevent to nose cone from popping off ***.

Single stage recovery by means of a 2ft kevlar Rocketman chute and 25mm wide 10m kevlar strap deployed at apogee. Kevlar strap folded in 30cm zig zags and subsequent bundle zigzag folded in 3 with 1m (up to pre-sewn loop) left loose. This compact bundle is than inserted into motor coupler.

Booster & motor

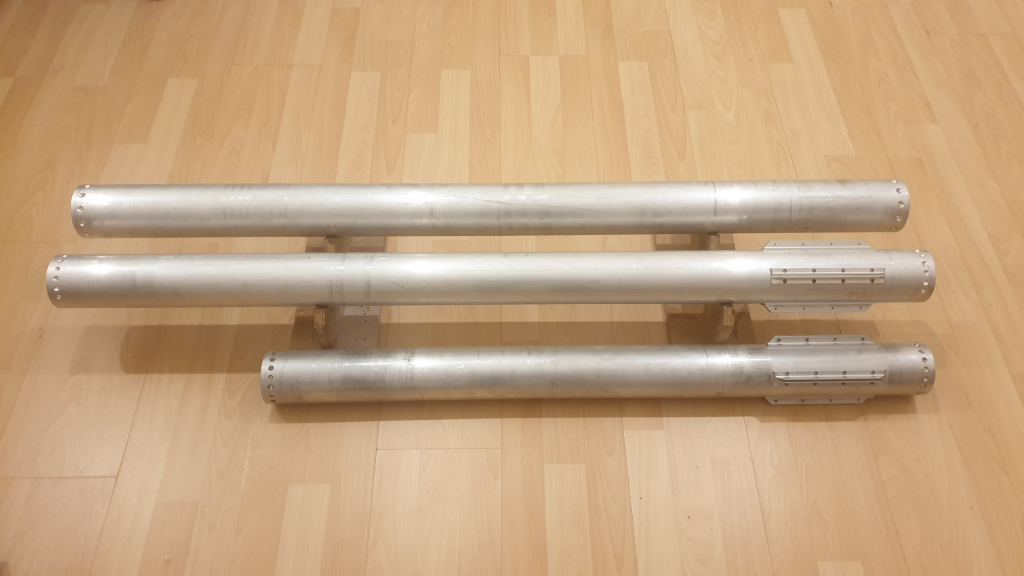

  • Rocket – Booster built by LD, aluminium airframe, minimum diameter, experimental booster.
    • Diameter – 130mm.
    • Length – 2600mm*.
    • Weight fully loaded – 42.0kg*.
    • Apogee: 6.0km*.
    • Maximum velocity: 600m/s*.
  • Booster Motor – experimental LD 12 point star core (130mm).
    • Propellant: 65/10 AP/Al with RIO (75,5% solids).
    • Total impulse: approx 43.000Ns.
    • Isp: approx 225s.
    • Burn time: 7,6s.
    • Propellant mass: 19,1kg.
    • Equivalent to a P5660.
  • Payload
    •  Flight control – Stratologger*.
    •  Onboard camera – 2 pcs.
    •  Tracking – Talky GPS, 1 Watt by LD; 433mHz AM emergency beacon.

Note: * – to be updated according to as-built values

BOOSTAR-TWO / GIGA IV – all-up test

On 24.09.2020 we tested to see whether the BOOSTAR-TWO and the GIGA IV would fit together in the launch rail and to prevent unpleasant integration surprises at the LRE. Espcially orientation of equipment and launch buttons are critical. All went well and within the hour the BOOSTAR-TWO / GIGA IV were erected and lowered from the launch rail. Again the orthodox method of first inserting and sustainer, raising it in the rail and then inserting the booster afterwhich the sustainer was lowered onto the booster was used.



LD's - 130mm monolithic 12 point star BOOSTAR-TWO – static test 04-05-2020

*** This is not my motor ***

  • Static test of LD's - 130mm monolithic 12 point star BOOSTAR-TWO.
  • Intended as a booster for the BOOSTAR-TWO / GIGA IV rocket.
  • 65/10/0.5 RIO propellant
  • Motor diameter 130mm, 1880mm length.
  • 19.1kg propellant, overall weight 34.8kg.
  • 30g silicone APCP / 15g thermite igniter.

More info can be found on LD's website or by clicking on below links:


Abandoned Sustainer Motor design

KILO monolithic hybrid finocyl – static test 26-01-2020

On Sunday 26th of January the KILO hybrid finocyl core burner motor was static tested on a 66/12 reload. This 66/12 propellant is a modified version of the Slow White propellant where the 4%Zn was replaced with 4% AP resulting in 66% AP and 12% Al at 78% solids. The result is a very docile propellant even in the Kn 600+ range with good pour-ability, density and improved Isp. Furthermore it remains slow burning though a bit faster than Slow White.

Similar to the KILO 4GXXL, this motor uses a Black Cat Rocketry 3” phenolic airframe tube as liner (longer than standard PML phenolic tubing) into which the 66/12 propellant was directly cast to form a monolithic grain. The rather unconventional core geometry consisted out of a finocyl in the top half and a core burner at the bottom half (nozzle) of the grain.

The idea behind this was to test a more direct thrust shut off and reduce tail off time for potentially using a pourable HTPB liner, spin casted directly into a casing. This will prevent buying expensive custom phenolic liners, splicing liners for greater length etc. For such a HTPB liner to successfully protect the casing against the hot burning flames, it requires the motor to directly shut off without extended burn time due to tail off and possible burning away the HTPB liner. For this to happen to goal was to have the top half of the grain burn away in the same time as the lower half. The lower half experiences erosive burning and burns away faster than the top in a conventional core geometry causing tail off. Hence the finocyl was placed on top with the core burner in the bottom of the grain maximizing web thickness near the nozzle.

A 4gr CuO/Fe03/Mg thermite 10mm heat shrink tube igniter was used to get the motor started in combination with a separate, paper wrapped booster charge consisting of 8gr plain APCP shavings with another 8gr of CuO/Fe03/Mg thermite.

Chamber pressure and thrust was again independently measured. Weather was dry but cloudy at 3-4°C. After a 5sec count down the remote controlled ignition was pushed and two distinct ‘pops’ were heard, indicating the charges ignited after each other instead of one uniform ignition charge. Thrust profile showed an expected erosive spike at start up with an simulated progressive burn and an unexpected 3s tail off. The motor reached a total impulse of 16.500Ns with a Isp of 217s. This was approximately 2000Ns more than the previously tested KILO 4GXXL motor in the same casing. The motor was easily disassembled with the silicone grease now also applied to the inside of the casing and not only to the outside of the liner. Post inspection:.....

This particular thrust curve shows that, with this core geometry, it will likely not be used as-is for the sustainer reload on GIGA IV. However with some modifications (like shortening the finocyl and lengthening the core burner - to reduce the erosive spike at the beginning) it might be a possible to get a flyable thrust curve. However a 100% core burner minimizes the erosive spike for this motor configuration while keeping the peak chamber pressure at the end of the burn within acceptable (casing) limits. This time accepting both erosive burning and thrust tail off for this slow burning propellant.





KILO monolithic hybrid finocyl – casting & set up

Some photos of the activities and casting of the hybrid finocyl core burner.

Notes:

  • Cylindrical foam core length: for simplicity 580mm / same length as the standard foam plate length. 580 is also approximately 1/2 of the liner length (but slightly less).
  • Finocyl foam core will be trimmed to length in casting jig and also represents approx half of the liner length.






KILO 4GXXL – Slow White static test 13-12-2019

On Friday the 13th, (an omen of bad luck?) JVDB & LD tested the KILO 4GXXL motor. This motor has an extended casing to hold more propellant when compared to the KILO 5GXL. The 4GXXL uses a Black Cat Rocketry 3" phenolic tubing for liner and casting tubes. With its four XXL bates grains, the motor geometry is designed to have an even more simulated, progressive burn profile to limit core mass flux erosive burning at start up. However due to the erosive nature of the Slow White propellant a relatively neutral burn is expected.

A 4gr CuO/Fe03/Mg thermite 10mm heat shrink tube igniter was used to get the motor started in combination with a booster charge created at the top bates grain consisting of 8gr plain APCP shaving with another 8gr of CuO/Fe03/Mg thermite.

Chamber pressure and thrust was independently measured. Despite typical Dutch cold and wet weather 4°C, setup op the test stand went smooth. After a 5sec count down the remote controlled ignition button was pushed and the motor roared to life with a 7-8 second burn. Thrust profile was relative neutral. A respectable total impulse of 14.500Ns was achieved for a 86mm OD motor. The motor was easily disassembled with the silicone grease now also applied to the inside of the casing and not only to the outside of the liner. Post inspection showed a cracked liner over the entire lenght - we have seen this happen before and quite typical. Unfortunately the nozzle cracked as well and required to be replaced for a new one. A potential cause for the nozzle cracking  could be a bit of play between graphite nozzle and the nozzle retainer which cause the nozzle to slam against the retainer upon pressurization or simple the increased thermal expansion of the graphite because of the bigger reload. The nozzle had over 5 previous firings. Thrust curve shows this is a suitable candidate for the GIGA IV sustainer motor.





GIGA IV - extended motor casing

"Black Cat Rocketry" liners are dimensional equivalent to PML phenolic tubes except that they come in 1225mm lengths whereas a PML tube is 916-912mm. This gives the possibility of an additional 310mm propellant without the need of splicing a liner. This BCR liner was already used in the BOOSTAR-ONE motor as a liner / casting tube for a monolithic star grain. As usual a heavy wall thickness 90x5mm static test casing with M5 bolts and a 86x3mm flight casing with M4 retaining bolts were machined. New casing length is 1360mm. Fin holders were gratefully machined by JWS.

Planned reloads / static tests:
