Rotary vacuum mixer design

Just modelling a rotary feedthrough for my vacuum lid using off the shelf items. Did not test whether the “reversed”  rotary shaft seal will hold the vacuum. It consists of:

  • 10mm ground shaft with machined groove for circlip / e-clip
  • 61900-2RS1 – Single Row Deep Groove Ball Bearing. 22x10x6mm
  • Standard rotary shaft seal 10 x 19 x 7mm. NBR or Viton / FKM.
  • Standard nylon insulation bushing
  • 32mm hex

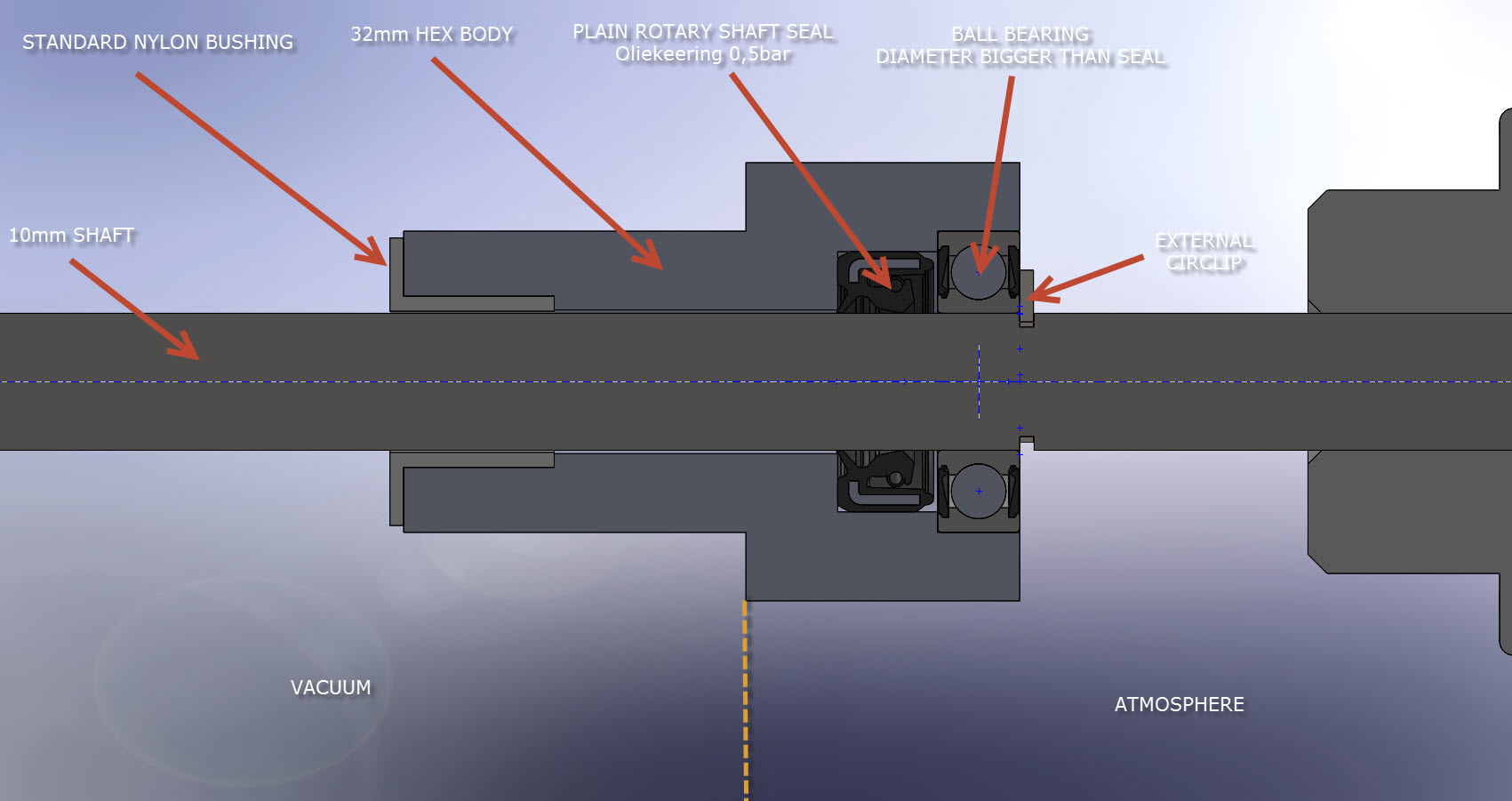

20150210 - Vacuum rotary feed through 1 20150210 - Vacuum rotary feed through 2
