Below is a quick representation of the head-end-ignition setup as used on the GIGA III rocket. There are many different configurations which work, including a more integrated, pyrotechnic, flame thrower type solution. However for the sake of robustness and proven designs I remained close to the modified NERO style M10x1 head end igniter body and the LD
Tag Archives: KILO5GXL

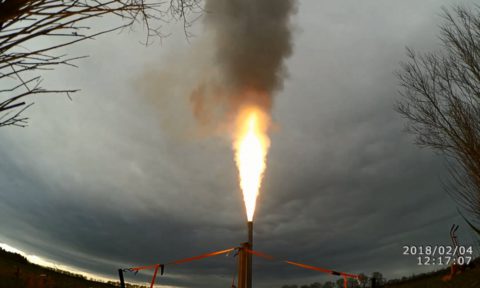

On Saturday 04.02.2018 we organized a small static test party. I wanted to test the KILO 5GXL motor measuring both thrust as well as chamber pressure. My current set up only allows for chamber pressure and to determine the Isp I needed actual thrust readings for which I needed the static test stand from LD.

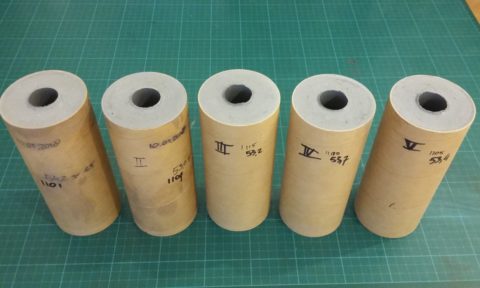

Some pictures of KILO 5GXL motor on a Slow white APCP reload.

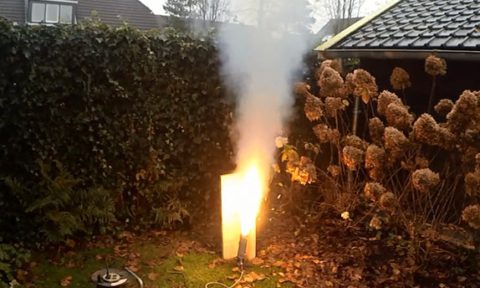

Characterization tests of the Slow White pourable propellant with unimodal AP 200um propellant at Kn 424-643. This is a 60mm OD / 50mm ID test motor with 2G neutral burning bates grains. As the name already implies the propellant is indeed slow burning and needs a high Kn to get the most out of the Isp in this short motor.

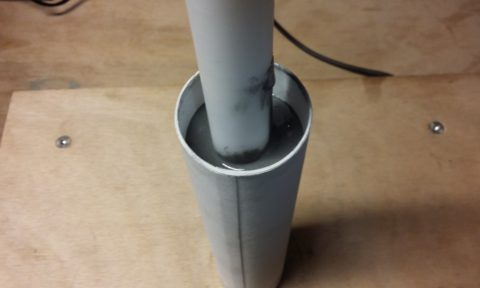

Mixing of a small 700gr batch of “slow white” APCP pourable propellant for characterization tests. Actually this bimodal formula calls for ¼ part op 90µm AP but I have found this difficult to obtain. Hence the all 200µm AP. The AP I have contains 25% by weight of particles 0-150µm so I hope this comes close to the

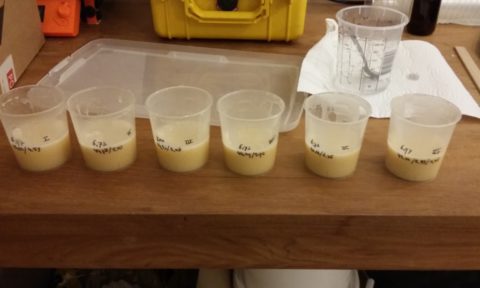

Awaiting some final ingredients I started to characterize the old-stock HTPB. I expect the HTPB I have is similar to R45HTLO so an EW of 1190 is used in the curative calculations. Small 50gr batches (measured to a hundreds of a gram) were made to evaluate the different Cure Indexes 0.9 – 1.3. The curative
